KZA FID Air
Zero Air generator
The AirGen series KZA FID Air is able to remove the total hydrocarbons to less than 0.05 ppm from the external compressed Air. Very compact, the KZA FID Air can purify up to 15 L/min of compressed Air and can bear a pressure up to 7 bar (101 PSI). The filtration of the hydrocarbons is performed by using a catalytic oven filled with palladium.
The reduction of hydrocarbons, including methane, and carbon monoxide decrease the background noise level and gives much better baseline stability, considerably increasing detector sensitivity and ensuring precise analytical results. High efficiency coalescing pre-filtration and post filtration of particulate size greater than 0.01 microns are used to prevent any kind of particles from entering the analytical device.
The KZA FID Air has a very simple and efficient interface. It can also be managed by the Hydrogen series KUBE is ideal to supply Hydrocarbon free Air to FID detectors.
Product features
- Easy use and quick installation
- High flow rate up to 3 L/min
- Pressure up to 7 bar
- RS 485 as standard
- Purity: < 0.05 ppm THC
- No maintenance
- Reduced foot print

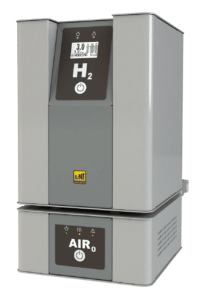

- Stackable with KUBE
Main applications
- GC-FID
- GC-NPD
- GC-FPD
- GC-PFPD
- THA
Technical specifications
| Models: KZA FID Air | 1.5 | 3.0 |
| Zero Air outlet | ||
| Flow rate (max) | 1.5 l/min | 3.0 l/min |
| Outlet pressure (min) | Inlet pressure – 0.5 bars (8 psi) @ maximum flow | |
| Outlet pressure (max) | 6.5 bars (94 psi) | |
| Total hydrocarbon content | < 0.05ppm | |
| Air inlet | ||
| Air Inlet requirement | ISO 8573-1:2010 Class [2:4:1] | |
| Max inlet hydrocarbon content | 100ppm | |
| Min supply pressure | 3 bars (43psi) | |
| Max supply pressure | 10 bars (145 psi) | |
| Temperature (min; Max) | 1°C (34°F); 35°C (95°F) | |
| Communication | ||
| RS485 | Standard | |
| General data | ||
| Supply voltage | 100-240Vac (±10%) 50/60 Hz | |
| Connection type | IEC320-C14 | |
| Nominal power (max) | 240W (280VA) | |
| Fuse rating (5x20mm) | 4A (250Vac – T) | |
| Dimensions (WxDxH cm) | 26x30x13 (Max footprint without external filter/regulator assembly) | |
| 26x40x16 (Max footprint with external filter/regulator assembly) | ||
| Net weight | < 8 kg | |
| Connections | ||
| Outlet port | 1/8″ female BSPP | |
| Inlet port | 1/8″ female BSPP | |
| Water purge | Threaded ISO M5 female | |
| Operating conditions | ||
| Working Temperature | 5-40°C (41-104°F) | |
| Storage Temperature | 1-50°C (34-122°F) | |
| Humidity (max, non condensing) | 80% [5-40°C (41-104°F)] | |
| Noise | <35dB(A) | |
| IP rating | IP20 | |
| Pollution degree rating | 2 (with no aromatic compounds) | |
| Altitude | < 2000m | |
