HG MINI

PEM Hydrogen generator

Intro Features and applications Technical specifications Video

The HG MINI is able to generate up to 300 cc/min of Hydrogen with purity better than 99.999% and pressure up to 12 bar (174 psi). The HG MINI includes a cell with polymeric membrane (PEM) using distilled water. No acid or alkaline solutions are involved.

The innovative static drying system ensures the maximum grade of hydrogen purity, protects the GC thanks to its unique humidity safe guard.

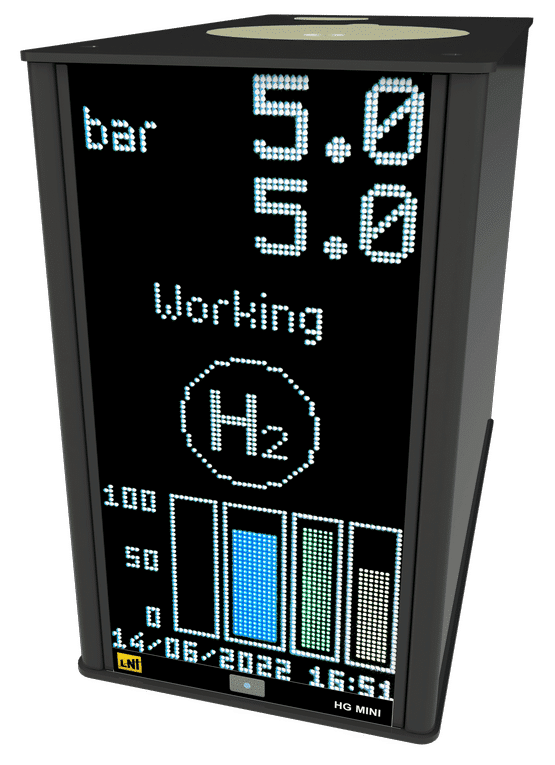

The on-board CPU automatically checks for internal leaks and constantly control the operating parameters to guarantee full safety. Up to 20 units can be connected in parallel mode using an external control box. The LED matrix interface provides a simple and immediate display of the status of the unit.

Download technical sheets

Download of technical sheet is protected, please enter the password to proceed.

Don’t have the password? Click here to request it!

Mandatory field

I have read the Privacy Policy and agree to the processing of data.

Mandatory field

Dear visitor, check your inbox:
we’ve just sent you an email containing the password you can use to download the product’s technical sheets.

Something went wrong:
we encountered problems sending you the email with the password.

Wait one minute and try again.

new

Product features

PEM cell technology with integrated tank (patented)
Flow rate up to 300 cc/min
Pressure up to 12 bar (174psi)
USB port standard
Purity: 99.999%
Static dryer + desiccant column
Safety routine and self monitoring
Reduced foot print
Smart humidity safe guard (patented)
High pressure GLS electronically controlled (patented)

Main applications

GC-FID
GC-NPD
GC-FPD
GC-PFPD
THA
GAS SENSING

Technical specifications

Model: HG MINI	150	150 D	300	300 D
General data
Electrolytic cell	PEM technology
Drying system	Static Dryer	Static dryer + Desiccant column	Static Dryer	Static dryer + Desiccant column
H2 purity	>99.999% *^1**
Dew-Point *^2**	<-30°C (-22°F)	<-60°C (-76°F)	<-30°C (-22°F)	<-60°C (-76°F)
Outlet pressure	12 bar (174 psi) *^3**
H2 flow-rate (Max)	150 cc/min		300 cc/min
Dimensions (W x D x H)	16 x 31.5 x 27.5 cm
Net weight (no water in tank)	10 kg
Communication
USB	Standard
RS485	Optional
Software functions
Parallel mode	Optional
Water
Quality Required	Deionized, ASTM II, <0.1uS
Internal tank capacity	1 L
Autorefill	Optional
Electrical data
Type of connection	IEC 320-C13 (desktop adapter)
Power supply voltage	100-240 (±10%) Vac 50/60 Hz
Nominal power (Max)	100 W		160 W
Connections
Hydrogen outlet	1/8” compression fitting
Water	Quick release push-in fitting
Operating/storage conditions
Working Temperature	5-40°C (41-104°F)*^4**
Storage Temperature	1-50°C (34-122°F)
Humidity (max, non condensing)	70% [5-40°C (41-104°F)]
Noise	< 35dB(A)
IP rating	IP20
Pollution degree rating	2 (with no aromatic compounds)
Altitude	< 2000m

*1 Referred to O2;

*2 ADP (Atmospheric Dew Point);

*3 12 bar (174 psi) with option 6930.00.069 / 10 bar (145 psi) standard;

*4 with temperature > 35°C (95°F) the H2 purity could be less;
